Parijat IioT Edge Hub Link Gateway NGSH-10302

Parijat IioT Edge Hub Link Gateway, NGSH-0902 is a small footprint versatile device that serves either as an IioT, Industry 4.0 or LORA Edge device. It can be setup as serving many diverse objectives. With powerful control and automation features, MQTT, AMQP, LORA support, NGSH-0902 keeps a close watch over enterprise resources & operations. It also facilitates keeping processing local, reducing load from the servers with the next generation IIoT architecture.

IIoT Edge Option

  • Serves as a generic data relay, converter, or PLC.
  • Supports IEC61131 programming as a traditional PLC
  • Connect to any cloud service
  • Local data storage (if uplink breaks). Sync with Server when comm restores
  • Variety of I/O types – DI, DO, Relay, AI, AO, RTD, T/C (specify the type & quantity needed)
  • Add-on Modules for multi-type T/C (qty 8 or 16), RTDs (8), Stepper motor control available

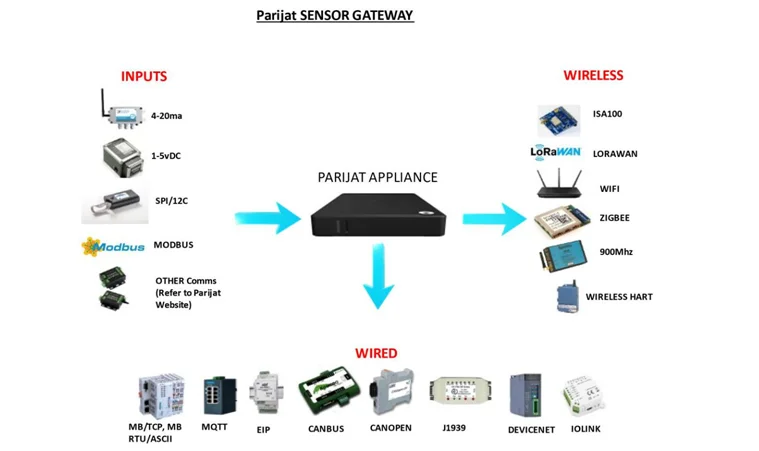

  • Field side downlink protocols – see the list on Parijat website.
  • Upgrade enabler for legacy devices via Uplink protocols – MQTT, Modbus, MBTCP, EIP, OPC, OPC-UA & many others. Refer to Parijat web site for extensive list of supported drivers.
  • PID control, I/O signal conditioning Data concentrator, protocol converter

Lora Edge Option

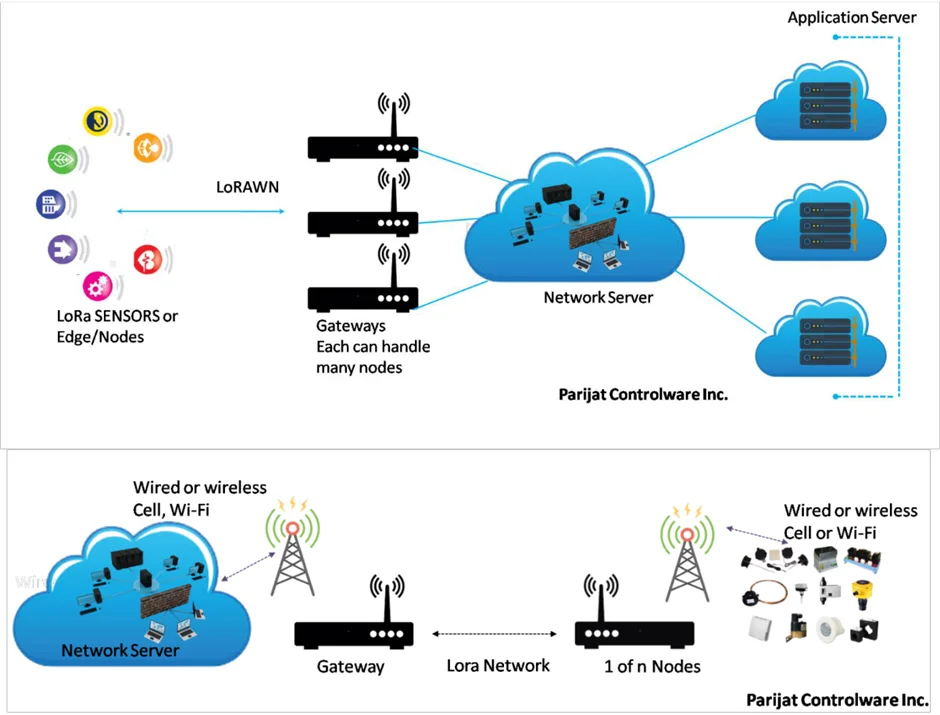

Lora Gateway or Lora Edge/node device on Lora network or on several other protocols – see below sketch for details. It can work as a data concentrator, virtual wire, relay/repeater and supports bursts or continuous Lora (Class A or C) messages. The system supports a mesh network as repeaters also. Uses unlicensed 900MHz frequency range for USA and other legal local ranges for rest of the regions of the world.

  • Can handle over 1000 downstream nodes.
  • Supports Sniffer, Station, softAP and Wi-Fi Direct modes
  • Data rates: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
  • Wireless Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
  • Receiver sensitivity upto: -98 dBm
  • UDP continuous throughput: 135 Mbps
  • Range (line of sight): With built-in antenna: 0.7km; with external antenna 2-5Km Urban
  • (1.24-3.1 mi), 15Km suburban (9.3 mi). Obstructions quantity & type will degrade range.

Frequency band for communication: 915 (USA), 868 (Europe/Asia) or 433 MHz. Please check your target regions.

Application Examples

  • Boilers, refrigerators, engines monitoring and control
  • Water treatment system monitoring & control
  • Oil & Gas production, midstream, chemicals
  • Storage, terminals & inventory movement
  • Temperature, humidity, CO2 monitoring & control
  • Transportation
  • Energy consumption, Reactive energy reduction
  • AC/DC – UPS Batteries Management
  • HVAC, Temperature and Humidity control
  • Electricity transmission & generation – both conventional & renewable energy management
  • Water quality monitoring

Features

  • Supports Modbus, MBTCP, MQTT & many uplink protocols – review from our drivers list.
  • Use different types of external I/O or smart field devices supporting Modbus type open downlink protocols. Almost unlimited quantity and types.
  • Replace or supplant auto diallers
  • Alerts for abnormal events and maintenance optimization
  • OPC, ODBC, Excel type file Integration
  • Data Aggregation
  • Local short term Historian during communication failure & for uplink synch when restored. · Real-time information (by plant; region; country; worldwide)
  • Production process machines monitoring and control
  • Can also interface with existing SCADA systems via various technologies.
  • Advanced 256-byte SSL security supported exceeding requirements of most agencies.
  • Use any cell service provider or any communications network hook up device that plugs into a USB port or Ethernet or serial port via USB/TCP adapters. Use LTE, GSM, CDMA, LORA or any other standard communications infrastructure.
  • Streaming data, polling or exception event based unsolicited data, store & forward capability
  • Connect with Microsoft Azure IoT Hub, AWS, Google Cloud or your cloud apps
  • Support for Industry4.0, IIoT, RESTful API as GET, POST or UPDATE.
  • Data conditioning, customization may be done either at the field end, central location or both.

Options (Please contact PCI for details)

  • Battery backup power or Solar power
  • Enclosure type & options like canopy, mounting
  • Special Area Classification
  • Cloud connection interface or services other than basic
  • User editing of the app

Complete end-to-end solutions & implementation services are also available
